| Model Number |

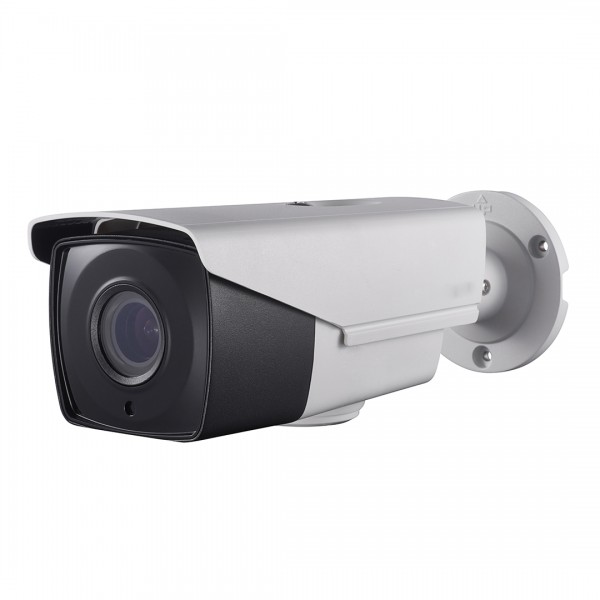

TVI-HAC334D-VB4Z |
| Image Sensor |
1/3" Progressive Scan CMOS |
| Signal System |
PAL / NTSC |
| Effective Pixels |
1920(H)*1080(V) |
| Min. Illumination |
0.01 Lux @ (F1.2,AGC ON),0 Lux with IR |
| |
0.014 Lux @ (F1.4,AGC ON),0 Lux with IR |
| Shutter speed |
1/25 s to 1/50,000 s |
| Lens |
2.8-12mm |
| Day & Night |
ICR |
| Synchronization |
Internal synchronization |
| Video Frame Rate |
1080p@25fps/1080p@30fps |
| HD Video Output |
1 Analog HD Output |
| CVBS Output |
1Vp-p Composite Output(75? / BNC) |
| S / N Ratio |
More than 52dB |
| Scene |
Indoor, Outdoor, Indoor1, LOW-LIGHT |
| Camera ID |
On/off (15 characters, position programmable) |
| AGC |
Support |
| D/N Mode |
Color/BW/EXT |
| White Balance |
ATW, AWC-SET, Indoor, Outdoor, Manual |
| Privacy Mask |
On/Off, maximum 2 zones |
| Motion Detection |
On/Off, maximum 4 zones |
| BLC |
Support |
| Anti-flicker |
On/off |
| Language |
English, Japanese, CHN1, CHN2, Korean, German, French, Italian, Spanish, Polish, Russian,Portuguese, Dutch, Turkish, Hebrew and Arabic |
| Function |
Eclipse, Digital noise reduction, Digital zoom(62x), Slow shutter, Mirror,Defog, Defect pixel correction, SMART D-ZOOM |
| Working Temperature / |
Humidity -40 °C – 60 °C (-40 °F – 140 °F) |
| |
Humidity 90% or less (non-condensing) |
| Power Supply |
DC12V / AC24V
|
| Power Consumption |
12V DC: Max. 5W |
| Weather Proof Ratings |
IP66 |
| IR Range |
Up to 120 ft |
| Communication |
Up the coax(need UTC controller) Protocol: Pelco-C(Coaxitron) |
| Product Dimensions |
5.1 x 4 |
| Product Weight |
0.9 lb |
| Package Dimensions |
6.75" x 6.75" x 6" |
| Package Weight |
1.5 lbs |
