| Model Number |

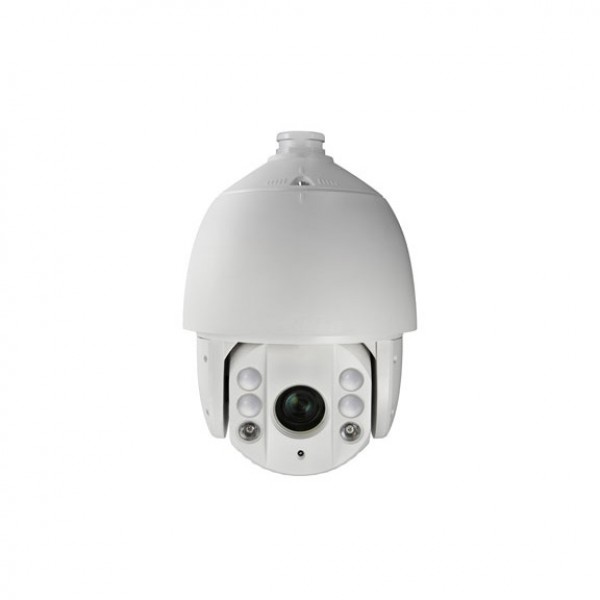

VIP-HNP302-IR-20X |
|
| Image Sensor |
1/2.8″ Progressive Scan CMOS |
|
| Effective Pixel |
2230K pixels |
|
| Min. Illumination |
Color: 0.05Lux @ (F1.4, AGC ON): B/W: 0.01 Lux (F1.6, AGC ON): 0 Lux with IR |
|
| White Balance |
Auto / Manual/ATW/Indoor/Outdoor/Daylight lamp/sodium lamp |
|
| AGC |
Auto / Manual |
|
| S / N Ratio |
>= 50dB |
|
| Digital Noise Reduction |
3D DNR |
|
| Backlight Compensation |
BLC |
|
| Wide Dynamic Range |
Digital WDR |
|
| Shutter Speed |
1 ~ 1/10,000s |
|
| Day & Night |
IR Cut Filter |
|
| Digital Zoom |
16X |
|
| Focus Mode |
Auto / Semiautomatic / Manual |
|
| Len Focal Length |
4.7 ~ 94.0mm, 20X |
|
| Zoom Speed |
Approx 3s (Optical Wide-Tele) |
|
| Angle of View |
58.3 ~ 3.2 degree (Wide-Tele) |
|
| Min. Working Distance |
10 ~ 1000 mm (Wide-Tele) |
|
| Aperture Range |
F1.4 ~ F3.5 |
|
| Range |
Pan: 360° endless: Tilt 5° ~ 90° (Auto Flip) |
|
| Speed |
Pan Manual Speed: 0.1° ~ 160°/s, Pan Preset speed: 240°/s; Tilt Manual speed: 0.1° ~ 120°/s, Tilt Preset speed: 200°/s |
|
| Proportional Zoom |
rotation speed can be adjusted automatically according to zoom multiples |
|
| Number of Preset |
256 |
|
| Patrol |
8 patrols,up to 32 presets per patrol |
|
| Park action |
Pattern/Pan scan /Tilt scan/Frame scan/Panorama scan/Random scan |
|
| Power-off Memory |
Support |
|
| IR distance |
UP to 300ft |
|
| IR Internsity |
Automatically adjusted, depending on the zoom ratio |
|
| Audio input |
Optional audio input (LINE input), 2 ~ 2.4V[p-]; output impedance: 1KΩ, +-10% |
|
| Audio Output |
Line level, impedance: 600Ω |
|
| Alarm I/O |
2/1 |
|
| Network Ethernet |
10Base-T / 100Base-TX, RJ45 connector |
|
| Max. Image Resolution |
1920 x 1080 |
|
| Frame Rate |
60Hz: 30fps (1920 x 1080), 30fps (1280 x 960), 30 fps (1280 x 720) |
|
| Image Compression |
H.264/MPEG4 |
|
| Audio Compression |
G.711u / G.711a /G.726 |
|
| Protocols |
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE |
|
| Simultaneous Live View |
Up to 6 |
|
| Streams |
Dual Streams |
|
| Mini SD Memory Card |
Micro SD Slot, up to 128GB |
|
| User/Host Level |
Up to 32 user, 3 Levels: Administrator, Camera control, Live view only |
|
| Security Measures |
User authentication (ID and PW), Host authentication (MAC address), IP address filtering |
|
| Application programming |
Open-ended API, support Onvif PSIA and CGI |
|
| Web Browser |
IE7, IE8, IE9, Chrome 8 +, Firefox3.5 +, Safari 5+ |
|
| Power |
24VAC / High-PoE: Max. 30W/21W (IR On / Off) |
|
| Working Temperature |
-30°C ~ 65°C (-22 °F ~ 149 °F) |
|
| Humidity |
90% or less |
|
| Protection Level |
IP66 standard TVS 4000V lightning protection, surge protection and voltage translent protection |
|
| Dimensions |
Ø 220 x 353.4mm (Ø8.66″ x 13.91″) |
|
| Weight (approx.) |
5.5kg (12.13lbs) |
|
| Mount Option |
Long-arm wall mount: DS-1601ZJ: Pendent mount: DS-1661ZJ(20cm) or DS-1662ZJ(50cm): Ceiling mount: DS-1663ZJ |
|
