Camera
|

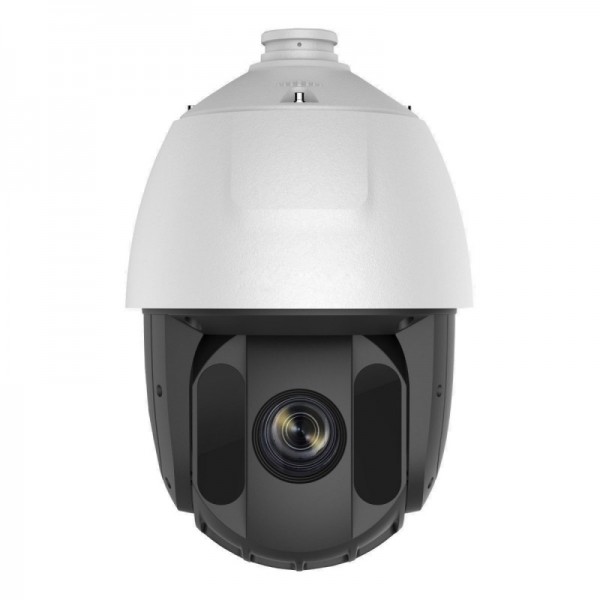

VIP-HNP214-IR-32X |
|
Image Sensor
|
1/2.5" progressive scan CMOS |
|
Min. Illumination
|
Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001Lux @(F1.6, AGC ON)
0 Lux with IR |
|
Shutter Time
|
50Hz: 1/1 s to 1/30,000 s
60Hz: 1/1 s to 1/30,000 s |
|
Horizontal Field of View
|
Horizontal field of view: 61.3° to 2.18° (Wide-Tele)
Vertical field of view: 36.9° to 1.22° (Wide-Tele)
Diagonal field of view: 68.4 to 2.5° (Wide-Tele) |
|
Day & Night
|
IR Cut Filter |
|
Digital Zoom
|
16× |
|
Privacy Masking
|
24 programmable privacy masks |
|
White Balance
|
Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent
Lamp/Sodium Lamp |
Camera Features
|
|
Gain Control
|
Auto/Manual |
Lens
|
|
Focal Length
|
4.8 mm to 153 mm, 32× optical zoom |
|
Focus Control
|
Auto/Semi-automatic/Manual |
|
Aperture range
|
F1.2 to F4.4 |
|
Min. working distance
|
10 mm to 1500 mm (wide-tele) |
|
Zoom speed
|
Approx. 5.6 s (optical lens, wide-tele) |
PTZ
|
|
Preset
|
300 |
|
3D Positioning
|
Support |
|
IR Distance
|
150 m |
Video
|
|
WDR
|
120 dB WDR (not supported by full frame rate) |
|
Video Bit Rate
|
256 Kbps to 16384 Kbps |
|
Smart IR
|
Support |
|
H.264+
|
Support |
|
H.265 Type
|
Main Profile |
|
H.265+
|
Support |
|
Third Stream
|
50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576,
640 × 480, 352 × 288)
60Hz: 30fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480,
640 × 480, 352 × 240) |
|
Sub‐Stream
|
50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)
60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) |
|
Main Stream
|
50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720)
50fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720)
60fps (1920 × 1080, 1280 × 960, 1280 × 720) |
Audio
|
|
Audio Interface
|
1-ch audio input, 2 to 2.4 V[p-p], 1 KΩ ± 10%
1-ch audio output, line level, impedance: 600 Ω |
Smart Function
|
|
Smart detection
|
Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting
Detection, Object Removal Detection, Unattended Baggage Detection, Audio Exception
Detection |
|
Basic Event Detection
|
Motion Detection, Video Tampering Detection, Exception |
|
Smart Record
|
ANR (Automatic Network Replenishment), Dual-VCA |
Network
|
|
Web Browser
|
IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51 |
|
User/Host Level
|
Up to 32 users
3 levels: Administrator, Operator and User |
|
Security Measures
|
User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption;
IEEE 802.1x port-based network access control; IP address filtering |
|
Client
|
iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect |
|
API
|
Open-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party
Management Platform |
|
Simultaneous Live View
|
Up to 20 channels |
|
|
Max. Resolution
|
2560 × 1440 |
|
ROI
|
Main stream, sub-stream, and third stream respectively support four fixed areas. |
|
Image Enhancement
|
HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus |
Compression Standard
|
|
Video Compression
|
Main Stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264/MJPEG |
|
Audio Bit Rate
|
G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM |
|
H.264 Type
|
Baseline Profile/Main Profile/High Profile |
|
Audio Compression
|
G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM |
|
SVC
|
Support |
Interface
|
|
Alarm Interface
|
2-ch alarm input/1-ch alarm output |
|
Audio Interface
|
1-ch audio input, 2 to 2.4 V[p-p], 1 KΩ ± 10%
1-ch audio output, line level, impedance: 600 Ω |
Pan and Tilt
|
|
Pan / Tilt range
|
360° endless/From -15° to 90° (auto-flip) |
|
Pan / Tilt speed
|
Configurable, from 0.1°/s to 120°/s
Preset speed: 120°/s
//Configurable, from 0.1°/s to 80°/s
Preset Speed: 80°/s |
|
Proportional zoom
|
Support |
|
Patrol
|
8 patrols, up to 32 presets for each patrol |
|
Park action
|
Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama
Scan |
|
Power-off memory
|
Support |
|
PTZ position display
|
Support |
|
Preset freezing
|
Support |
|
Scheduled Task
|
Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama
Scan/Dome Reboot/Dome Adjust/Aux Output |
|
Pattern
|
4 pattern scans, record time over 10 minutes for each scan |
Network management
|
|
Network Protocols
|
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,
RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
Network
|
|
Network Protocols
|
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,
RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
Electrical
|
|
Power
|
24 VAC and Hi-PoE |
Environmental
|
|
Operating Temperature
|
Max.: 30 W (Max. 10 W for IR) |
|
Operating Humidity
|
≤ 90% |
General
|
|
Power
|
24 VAC and Hi-PoE |
|
Dimensions
|
Φ 208 mm × 345 mm (Φ 8.19" × 13.58") |
|
Weight
|
Approx. 3.3 kg (7.28 lb) |
|
Material
|
ADC 12, PC+10% GF |
|
Protection (General)
|
IP66 Standard, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient
Protection |
|
Operating Humidity
|
≤ 90% |
