Details
| Specifications |
|
| Model Number |
VIP-HNC512-VBA32-LPR |
|
| Image Sensor |
1/2.8″ progressive scan CMOS |
|
| Min. illumination |
0.005 Lux @ (F1.4, AGC ON), 0 Lux with IR |
|
| Shutter time |
1s ~ 1/100.000s |
|
| Lens |
8-32mm @ F1.4 angle of view: 31.2°~10.2° |
|
| Day & night |
ICR |
|
| Digital noise reduction |
3D DNR |
|
| Wide dynamic range |
140dB |
|
| Backlight compensation |
Yes, zone configurable |
|
| Video compression |
H.264 / H.264+ / MJPEG / MPEG4 |
|
| H.264 compression profile |
Main profile |
|
| Bit rate |
32 Kbps ~ 16 Mbps |
|
| Dual stream |
Yes |
|
| Max. image resolution |
1920 x 1080 |
|
| Frame rate |
60Hz: 60fps (1920 x 1080), 60fps (1280 x 720) |
|
| Image settings |
Saturation, brightness, contrast, sharpness adjustable through client software or web browser |
|
| On board Storage |
Built-in Micro SD/SDHC/SDXC card slot, up to 128 GB |
|
| Audio |
1/1 |
|
| Alarm |
1/1 |
|
| Alarm trigger |
Motion detection, tampering alarm |
|
| Protocols |
TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1x, Qos |
|
| System compatibility |
ONVIF, PSIA, CGI |
|
| General functionalities |
User authentication, watermark |
|
| Communication interface |
1 RJ45 10M/ 100 M Ethernet interface |
|
| Operating conditions |
-30°C ~ 60°C (-22°F ~ 140°F) humidity 90% or less (non-condensing) |
|
| Power supply |
12 VDC ± 10%, PoE (802.3at) |
|
| Power consumption |
Max. 15W |
|
| Ingress protection |
IP67 |
|
| EXIR range |
up to 360ft |
|
| Dimensions |
100×103.9×311.8mm (3.93″x4.09″x12.28″) |
|
| Weight |
2000g (4.41 lbs) |
|
| Electrical Box |
HTH-260ZJ |
|
| Pole,Corner |
P:HTH-275ZJ,C:HTH-276ZJ |
|
Additional Information
| UPC |
No |
| Camera Housing |
Bullet |
| Camera Resolution |
2.0MP / 1080P |
| Camera Technology |
IP |

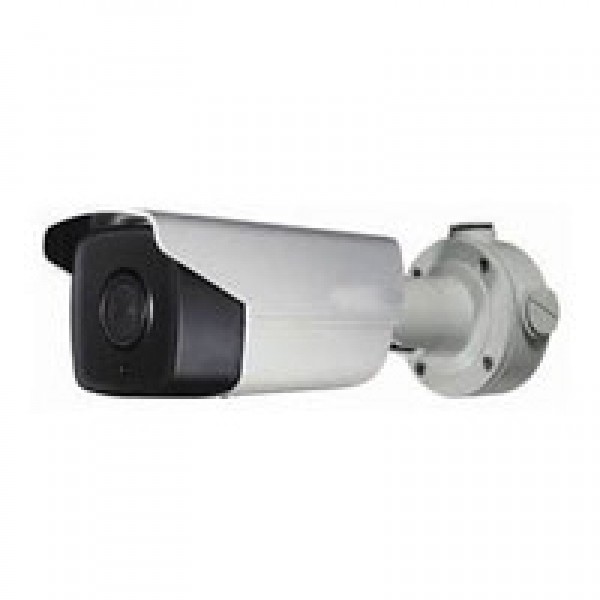

IP Bullet: 2MP Smart IP Motorized VF Bullet for License Plate Recognition, Exterior
