Details
| Specifications | ||
|---|---|---|

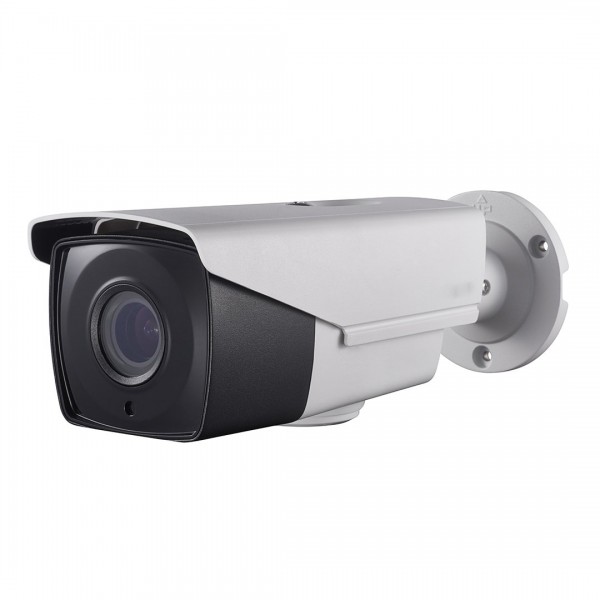

| Model Number | TVI-HAC344D-VB4Z | |
| Image Sensor | 2MP CMOS Sensor | |
| Video Format95 | PAL / NTSC | |
| Effective Pixels | 1928(H)*1088(V) | |
| Min. Illumination | 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR | |
| Shutter speed | 1/25 s to 1/50,000 s | |
| Lens | 2.8-12mm @ F1.2, Angle of view: 92° – 32° | |
| Lens Mount | φ14 | |
| Day & Night | ICR | |
| Wide dynamic range | 120dB True WDR | |
| Synchronization | Internal synchronization | |
| Video Frame Rate | 1080p@30fps | |
| HD Video Output | 1 Analog HD output | |
| CVBS | No | |
| Scene | Indoor, Outdoor, Indoor1, LOW-LIGHT | |
| AGC | Support | |
| D/N Mode | Color/BW/EXT | |
| White Balance | ATW, AWC-SET, Indoor, Outdoor, Manua | |
| BLC | Support | |
| S/N Ratio | More than 52db | |
| Function | Eclipse, Digital noise reduction, Digital zoom(62x), Slow shutter, Mirror, Defog, Defect pixel correction, SMART D-ZOOM |
|
| Working Temperature / Humidity | -40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing) |
|
| Power Supply | 12 VDC ; -A: 12 VDC, 24 VAC | |
| Power Consumption | 12V DC: Max. 7W ; 24V AC: Max. 10W | |
| Weather Proof Ratings | IP66 | |
| IR Range | Up to 120 ft | |
| Communication | Up the coax(need UTC controller) Protocol: Pelco-C(Coaxitron) |
|
| Dimensions | 3.62″ x 3.34″ x 3.34″ | |
| Weight | 1.98 lbs | |
| Electrical Box | HTH-280ZJ-XS | |
| Pole Mount | HTH-275ZJ | |
| Corner Mount | HTH-276ZJ |
Additional Information
| UPC | No |
|---|---|
| Camera Housing | Bullet |
| Camera Resolution | 2.0MP / 1080P |
| Camera Technology | HD-TVI |
