Details
Max Image Resolution |
MP |
Image Sensor |
1/2" CMOS |
Image Size |
3840 x 2160 |
Electronic Shutter |
1/1s~1/100,00s |
Minimum Illumination |
0.01Lux/F1.5(Color), 30IRE, 0Lux/F1.5(B/W) |
S/N Ratio |
More then 65dB |
IR LEDs |
4 |
Smart IR |
Support |
IR Distance |
328ft (100m) |
IR On/Off Control |
Auto / Manual |
Focal Length |
3.7-11mm |
Angle of View |
H: 112°~46° |
Max. Aperture |
F1.5 |
Optical Zoom |
N/A |
Close Focus Distance |
200mm (7.87") |
DORI Distance |
|
DORI Definition |
Distance |
Wide |
Tele |
Detec |
25px/m (8px/ft) |
83m (273ft) |
190m (624ft) |
Observe |
63px/m (19px/ft) |
33m (109ft) |
76m (250ft) |
Recognize |
125px/m (38px/ft) |
17m (54ft) |
38m (125ft) |
Identify |
250ppm (76px/ft) |
8m (27ft) |
19m (62ft) |
|
Pan / Tilt / Rotation |
Pan: 0° ~ 360°; Tilt: 0° ~ 90°; Rotation: 0° ~360° |
Video Compression |
N/A |
Video Resolution |
8MP (3840x2160) |
Video Frame Rate |
PAL: 3840x2160@12.5fps, 2560x1440@25fps;
NTSC: 3840x2160@15fps, 2560x1440@30fps |
Day / Night |
Auto (ICR) / Manual |
BLC Mode |
BLC / HLC / WDR |
White Balance |
Auto / Manual |
Gain Control |
AGC |
Digital Noise Reduction |
2D/3D |
Motion Detection |
N/A |
Audio Compression |
N/A |
Video Output |
1-channel HDCVI video output & 1-channel CVBS video output |
Certifications |
CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
Audio Interface |
1-channel audio in |
RS485 |
N/A |
Alarm In |
2 |
Alarm Out |
1 |
Power Supply |
12V DC ±25% / 24V AC ±25% |
Power Consumption |
Max. 18.4W |
Operating Temperature |
-40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH; Start up should be done at above -40°C (-40°F) |
Storage Temperature |
-40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH |
Ingress Protection |
IP67 & IK10 |
Dimensions |
273.2mm x 95.0mm x 95.0mm (10.76" x 3.74" x 3.74") |
Weight |
Net weight 1.08kg (2.38lb); Gross weight 1.33kg (2.93lb) |
Additional Information
UPC |
No |
Camera Housing |
Bullet |
Camera Resolution |
4K |
Camera Technology |
HD-CVI |

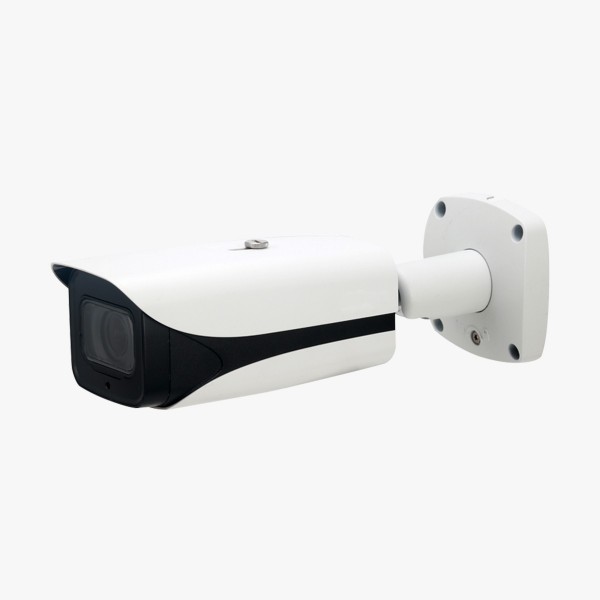

4K Bullet: 4K HDCVI WDR IR Bullet Camera
