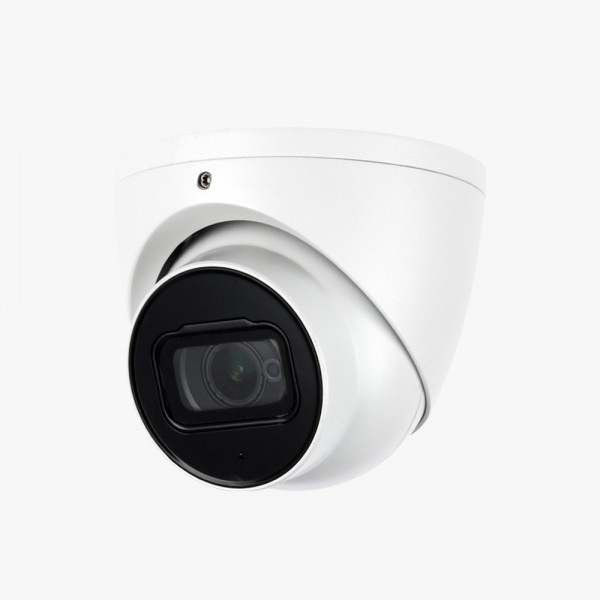

4K Dome: 4K Starlight HDCVI IR Eyeball Camera

More Views

4K Dome: 4K Starlight HDCVI IR Eyeball Camera

Availability: In stock


Model: TAAC-HCC5382T-IRA-28

1/2" 4K Starlight HDCVI IR Eyeball Camera, 3.6mm, IP67, DC12V, 164' IR,
Built-in Mic, Audio-in, Analog Switchable (OSD), UL Listed



Details

Max Image Resolution 8MP
Image Sensor 1/2" CMOS
Image Size 3840(H)×2160(V), 8MP
Electronic Shutter PAL: 1/4s~1/100,000s NTSC: 1/3s~1/100,000s
Minimum Illumination 0.005Lux/F1.5, 30IRE, 0Lux IR on
S/N Ratio More then 65dB
IR LEDs 2
Smart IR Support
IR Distance Up to 50m (164feet)
IR On/Off Control Auto / Manual
Focal Length 2.8mm
Angle of View H: 112°~46°
Max. Aperture F1.6
Optical Zoom N/A
Close Focus Distance 1800mm/ 70.87''
DORI Distance


DORI

Definition

Distance

Detect

25px/m (8px/ft)

2.8mm:84m(276ft)

Observe

63px/m (19px/ft)

2.8mm:34m(112ft)

Recognize

125px/m (38px/ft)

2.8mm:17m(56ft)

Identify

250px/m (76px/ft)

2.8mm:8m(26ft)

Pan / Tilt / Rotation Pan: 0° ~ 360° Tilt: 0° ~ 70° Rotation: 0° ~ 360°
Video Compression N/A
Video Resolution 8MP (3840×2160)
Video Frame Rate 15fps@4K, 20fps@6MP, 25/30fps@4MP
Day / Night Auto (ICR) / Manual
BLC Mode BLC / HLC / WDR (120dB)
White Balance Auto / Manual
Gain Control AGC
Digital Noise Reduction 2D/3D
Motion Detection N/A
Audio Compression N/A
Video Output 1-channel BNC high definition video output / CVBS video output (DIP switch)
Certifications CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Audio Interface 1ch in & Built-in Mic
RS485 N/A
Alarm In N/A
Alarm Out N/A
Power Supply 12V DC ±30%
Power Consumption Max 8W (12V DC, IR on)
Operating Temperature -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH * Start up should be done at above -30°C (-22°F)
Storage Temperature -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Ingress Protection IP67
Dimensions Φ106mm×99.2mm (Φ4.17"×3.9")
Weight Net Weight 0.5kg (1.10b) Gross Weight 0.62kg (1.37lb)

Additional Information

UPC No
Camera Housing Dome
Camera Resolution 4K
Camera Technology HD-CVI

4K Dome: 4K Starlight HDCVI IR Eyeball Camera

USD

$49.00
