Details
| Max Image Resolution |
8MP |
| Image Sensor |
1/2" CMOS |
| Image Size |
3840(H)×2160(V), 8MP |
| Electronic Shutter |
PAL: 1/4s~1/100,000s NTSC: 1/3s~1/100,000s |
| Minimum Illumination |
0.005Lux/F1.5, 30IRE, 0Lux IR on |
| S/N Ratio |
More then 65dB |
| IR LEDs |
2 |
| Smart IR |
Support |
| IR Distance |
Up to 30m (98feet) |
| IR On/Off Control |
Auto / Manual |
| Focal Length |
2.8mm |
| Angle of View |
H: 110.8° |
| Max. Aperture |
F1.6 |
| Optical Zoom |
N/A |
| Close Focus Distance |
1800mm/70.87'' |
| DORI Distance |
|
DORI
Definition
|
Distance
|
|
Detect
|
25px/m (8px/ft)
|
2.8mm:84m(276ft)
|
|
Observe
|
63px/m (19px/ft)
|
2.8mm:34m(112ft)
|
|
Recognize
|
125px/m (38px/ft)
|
2.8mm:17m(56ft)
|
|
Identify
|
250px/m (76px/ft)
|
2.8mm:8m(26ft)
|
|
| Pan / Tilt / Rotation |
Pan: 0° ~ 355° Tilt: 0° ~ 75° Rotation: 0° ~ 355° |
| Video Compression |
N/A |
| Video Resolution |
8MP (3840×2160) |
| Video Frame Rate |
15fps@4K, 20fps@6MP, 25/30fps@4MP |
| Day / Night |
Auto (ICR) / Manual |
| BLC Mode |
BLC / HLC / WDR (120dB) |
| White Balance |
Auto / Manual |
| Gain Control |
AGC |
| Digital Noise Reduction |
2D/3D |
| Motion Detection |
N/A |
| Audio Compression |
N/A |
| Video Output |
1-channel BNC high definition video output / CVBS video output (DIP switch) |
| Certifications |
CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
| Audio Interface |
1ch in & Built-in Mic |
| RS485 |
N/A |
| Alarm In |
N/A |
| Alarm Out |
N/A |
| Power Supply |
12V DC ±30% |
| Power Consumption |
Max 7W (12V DC, IR on) |
| Operating Temperature |
-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH * Start up should be done at above -30°C (-22°F) |
| Storage Temperature |
-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH |
| Ingress Protection |
IP67,K10 |
| Dimensions |
Φ122mm×88.9mm (Φ4.8"×3.5") |
| Weight |
Net Weight 0.41kg (0.9lb) Gross Weight 0.59kg (1.3lb) |
Additional Information
| UPC |
No |
| Camera Housing |
Dome |
| Camera Resolution |
4K |
| Camera Technology |
HD-CVI |

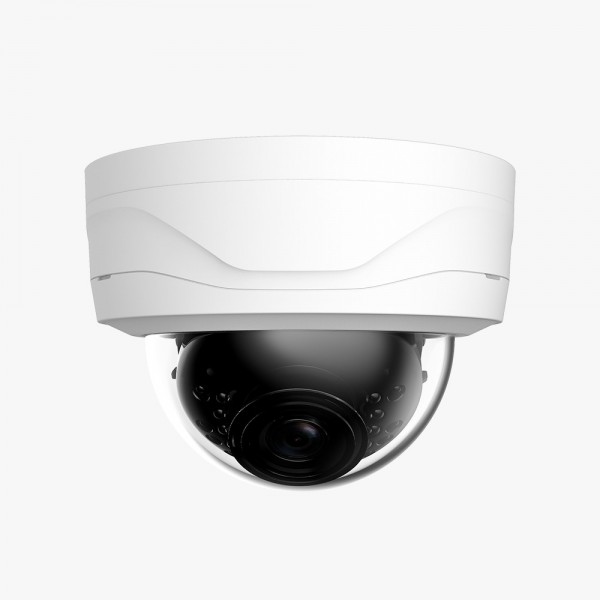

4K Dome: 4K Starlight HDCVI IR Dome Camera
