Details
Max Image Resolution |
8MP |
Image Sensor |
1/2" CMOS |
Image Size |
3840(H)×2160(V), 8MP |
Electronic Shutter |
PAL: 1/4s~1/100,000s NTSC: 1/3s~1/100,000s |
Minimum Illumination |
0.005Lux/F1.5, 30IRE, 0Lux IR on |
S/N Ratio |
More then 65dB |
IR LEDs |
4 |
Smart IR |
Support |
IR Distance |
Up to 80m (262feet) |
IR On/Off Control |
Auto / Manual |
Focal Length |
3.7-11mm |
Angle of View |
H: 112°~46° |
Max. Aperture |
F1.5 |
Optical Zoom |
N/A |
Close Focus Distance |
200mm 7.87'' |
DORI Distance |
|
DORI Definition |
Distance |
Wide |
Tele |
Detec |
25px/m (8px/ft) |
83m(272ft) |
190m(623ft) |
Observe |
63px/m (19px/ft) |
33m(108ft) |
76m(249ft) |
Recognize |
125px/m (38px/ft) |
17m(56ft) |
38m(125ft) |
Identify |
250px/m (76px/ft) |
8m(26ft) |
19m(62ft) |
|
Pan / Tilt / Rotation |
Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotation: 0° ~ 360° |
Video Compression |
N/A |
Video Resolution |
8MP (3840×2160) |
Video Frame Rate |
15fps@4K, 20fps@6MP, 25/30fps@4MP |
Day / Night |
Auto (ICR) / Manual |
BLC Mode |
BLC / HLC / WDR (120dB) |
White Balance |
Auto / Manual |
Gain Control |
AGC |
Digital Noise Reduction |
2D/3D |
Motion Detection |
N/A |
Audio Compression |
N/A |
Video Output |
1-channel BNC high definition video output / CVBS video output (DIP switch) |
Certifications |
CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
Audio Interface |
1ch in & Built-in Mic |
RS485 |
N/A |
Alarm In |
N/A |
Alarm Out |
N/A |
Power Supply |
12V DC ±30% |
Power Consumption |
Max 12.5W (12V DC, IR on) |
Operating Temperature |
-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH; Start up should be done at above -30°C (-22°F) |
Storage Temperature |
-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH |
Ingress Protection |
IP67 |
Dimensions |
244.1mm×90.4mm×90.4mm (9.61"×3.56"×3.56") |
Weight |
Net Weight 0.76kg (1.68lb) Gross Weight 1.02kg (2.25lb) |
Additional Information
UPC |
No |
Camera Housing |
Bullet |
Camera Resolution |
4K |
Camera Technology |
HD-CVI |

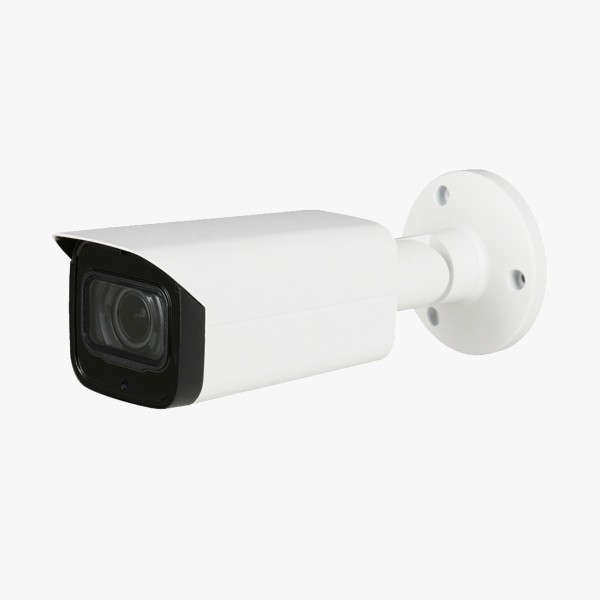

4K Bullet: 4K Starlight HDCVI IR Bullet Camera
