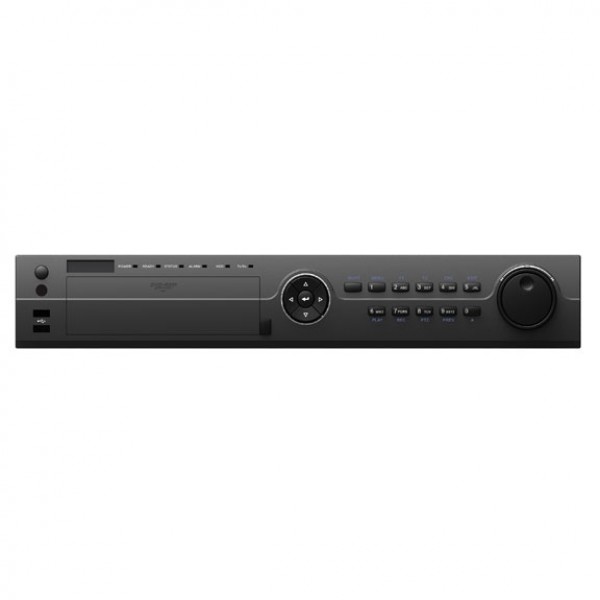

NVR: 32 Channel & 16 PoE Network Video Recorder

More Views

NVR: 32 Channel & 16 PoE Network Video Recorder

Availability: In stock

Model: NVR-HNR51P6-32







  • Up to 32 Ch. IP cameras input

  • 256 Mbps Input Max and 256 Mbps Output Max

  • Support H.265

  • Up to 12 MP resolution recording

  • Independent VGA output up to 1080p, HDMI output at up to 4K resolution

  • Plug & Play with 16 independent PoE network interfaces

  • Support POS function



Details

Specifications
Model Number HNR51P6-32
Video Compression H.264 / H.264 / H.265
IP Video Input 32 Ch. (256 Mbps Max input)
Video Output 1 HDMI, 1 VGA, 1 BNC
Audio Input/Output 1/1
Two-way Audio 1/1
Real-time recording resolution Up to 12 Megapixels
HDMI Output Resolution 4K
VGA Output Resolution 1080P, 60Hz
RAID N/A
Synchronous Playback 4 Ch. @ 4K, or 16 Ch. @ 1080P
Alarm Input/ Output 16/4
Network Interface 1 RJ45 10M/100M/1000M adaptive Ethernet Interface
PoE Network Interfaces/Built-in switch 16 independent 100 Mbps PoE network interfaces
Internal SATA 4 SATA interfaces (up to 8TB each)
eSATA 1 eSATA
USB interface 2 x USB2.0, 1 x USB3.0
Chassis 19-inch rack-mounted 1.5U
Dimensions (W × D × H) 17.5″W × 15.4″D × 2.75″H
Power Supply 100 ~ 240 VAC, 20W
Weight 11 lbs (without hard disk)

Additional Information

UPC No
Recorder Technology Hybrid: Analog / AHD
Recorder Channel 16 Channel
Recording Rate 1080p Real Time

NVR: 32 Channel & 16 PoE Network Video Recorder

USD

$259.00
