Details
| Specifications |
|
| Model Number |
HNR32P6-16 |
|
| Video Compression |
H.265 / H.264+ / H.264 / MJPEG |
|
| IP Video Input |
16 Ch. (160 Mbps Max input) |
|
| Video Output |
1 HDMI, 1 VGA |
|
| Audio Input/Output |
1/1 |
|
| Two-way Audio |
1/1 |
|
| Real-time recording resolution |
Up to 12 MP |
|
| HDMI Output Resolution |
4K, 3840×2160@30Hz, – 2K, 1920×1080@60Hz, 1600×1200@60Hz, 1280×1024@60Hz,
1280×720@60Hz, 1024×768@60Hz |
|
| VGA Output Resolution |
1920×1080@60Hz, 1280×1024@60Hz, 1280×720@60Hz, 1024×768@60Hz |
|
| Synchronous Playback |
2 Ch. @ 4K, or 8 Ch. @ 1080p, 16 Ch. @ 720p |
|
| Network Interface |
1 RJ45 10M/100M/1000M |
|
| PoE Network Interfaces/Built-in switch |
16 independent 10/100 Mbps PoE network interfaces |
|
| Internal SATA |
2 SATA interfaces (up to 8TB each) |
|
| Alarm I/O |
4/1 |
|
| USB interface |
1 x USB2.0, 1 x USB 3.0 |
|
| Operation Temperature |
-10 °C ~ +55 °C |
|
| Chassis |
385mm chasis |
|
| Dimension |
15.2″W x 12.4″D x 2.0″H |
|
| Power Supply |
100 ~ 240VAC |
|
| Weight |
6.6 lbs |
|
Additional Information
| UPC |
No |
| Recorder Technology |
Network |
| Recorder Channel |
16 Channel |
| Recording Rate |
720p Real Time, 1080p 15fps |

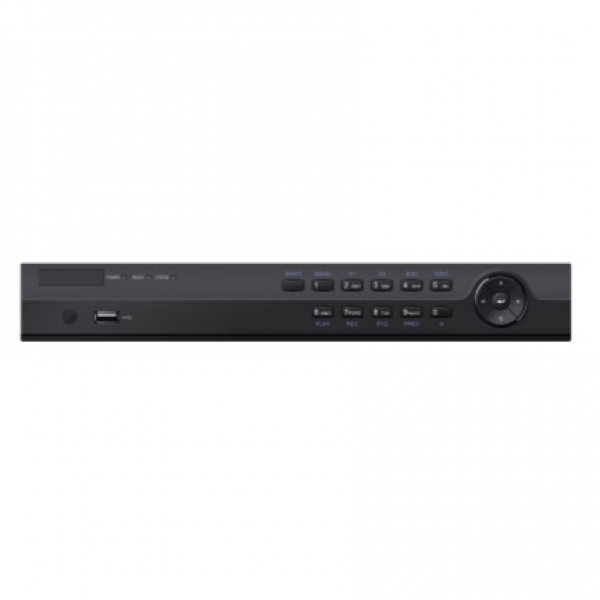

NVR: 16 Channel & 16 POE Network Video Recorder
