Details
| Specifications |
|
| Model Number |
NVR-HNR32P4-4 |
|
| Video Compression |
H.264 / H.264+ / H.265 / MPEG4 |
|
| IP Video Input |
4 Ch. (40Mbps Max input) |
|
| Video Output |
1 HDMI, 1 VGA |
|
| Audio Input/Output |
1/1 |
|
| Two-way Audio |
1/1 |
|
| Real-time recording resolution |
Up to 8 Megapixels |
|
| HDMI Output Resolution |
4K, 3840×2160@30Hz, 1920×1080@60Hz, 1600×1200@60Hz, 1280×1024@60Hz, 1280×720@60Hz, 1024×768@60Hz |
|
| VGA Output Resolution |
1920×1080@60Hz, 1280×1024@60Hz, 1280×720@60Hz, 1024×768@60Hz |
|
| Synchronous Playback |
4 ch @ 1080P |
|
| Network Interface |
1 RJ45 10M/100M |
|
| PoE Network Interfaces/Built-in switch |
4 port 802.3af PoE Switch
4 independent 100 Mbps PoE network interfaces |
|
| Internal SATA |
1 SATA interfaces (up to 6TB each) |
|
| eSATA |
N/A |
|
| USB interface |
2 x USB2.0 |
|
| Operation Temperature |
-10 °C ~ +55 °C |
|
| Chassis |
1U |
|
| Dimension |
12.4″W x 9.1″D x 1.8″H |
|
| Power Suppy |
48VDC, 10W |
|
| Weight |
2.6 lbs (without hard disk) |
|
Additional Information
| UPC |
No |
| Recorder Technology |
4K |
| Recorder Channel |
4 Channel |
| Recording Rate |
4K |

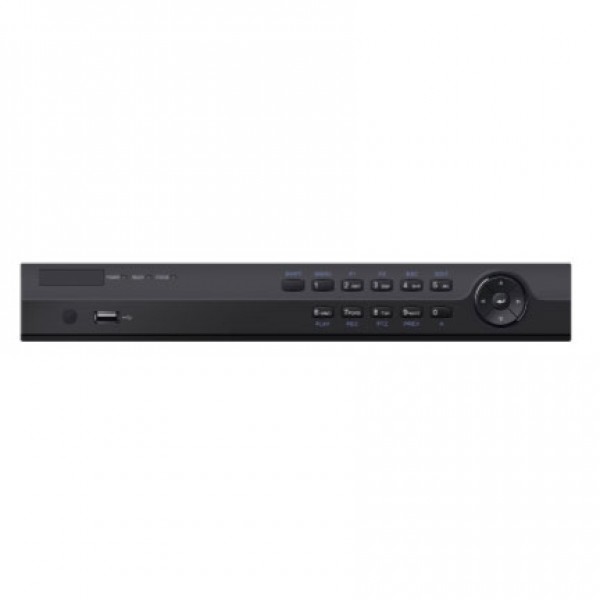

NVR: 4 Channel & 4 POE Network Video Recorder
