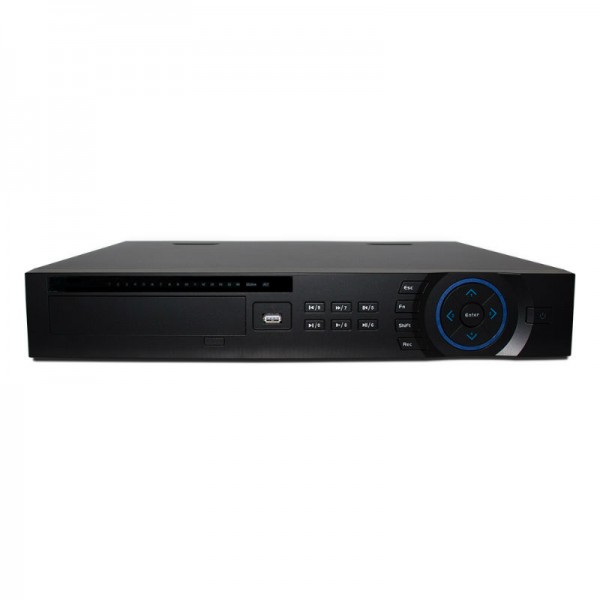

NVR: 4K 16CH 1U NVR w/16POE

Availability: In stock

Model: NVR-C302A-16/16P-4KS2

16 Channel IP Camera Input, H.265/H.264/MJPEG Dual Codec Decoding, Max 200Mbps Incoming Bandwidth, Up to 8MP Resolution for Preview & Playback, 12Mp Resolution Live-view & Playback, 2HDMI/1 VGA Simultaneous Video Output, 16 Channel Synchronous Real-Time Playback, GRID interface, Support 4 SATA HDD's up to 32TB, 3 USB(2 USB3.0), 1 eSATA port, Support IPC UPnP, 16PoE Ports, Support P2P, QR Code Scan & Add(Hard Drive Not Included)


Max Image Resolution MP
System Compression Quad Core CPU
Main Processor Embedded Processor
Video Out 1 HDMI, 1 VGA
Video Resolution HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720 VGA: 1920×1080, 1280×1024, 1280×720
Display Split 1/4/8/9/16
Audio In 1
Audio Out 1
2 Way Audio 1 Channel Input, 1 Channel Output, RCA
Recording Resolution 8MP, 6MP, 5MP, 3MP, 1080P, 1.3MP, 720P, etc
Recording Rate 200Mbps
Bit Rate 16~20Mbps
Recording Mode Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Tampering, Video Loss), Stop
Record Interval 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Alarm In 4 Channel
Alarm Out 2 Channel
Trigger Events Recording, PTZ, Tour, Video Push, Email, Snapshot, Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering
Alarm Relay Output N/A
Playback Channels 1/4/9/16
Playback Search Time/Calendar Search, Event (motion)
Playback Function Play, Pause, FF, FB; Digital zoom
Backup Mode USB Device, network
Network Interface RJ-45 port (10/100/1000Mbps)
PoE Ports 16 ports (IEEE802.3af/at)
Network Function HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, SNMP, IP Search (Support Dahua IP camera, DVR, NVS, etc.), Easy4ip
Network Max. Users 128 users
Mobile iPhone, Android
USB 2 ports (1 Rear USB3.0, 1 front USB2.0)
RS485 N/A
RS232 1 Channel
Internal HDD 2 SATA III ports, up to 12TB
Power Supply Single AC 100~240V, 50/60 Hz
Power Consumption AC100V~240V <13.2W(Without HDD)
Operating Conditions -10 ~+55°C / 10~90%RH / 86~106kpa
Dimensions 1U, 375mm × 327mm × 53mm
Weight 4.4kg(without HDD)

Additional Information

Recorder Technology 4K
Recorder Channel 16 Channel
Recording Rate 192Mbps
