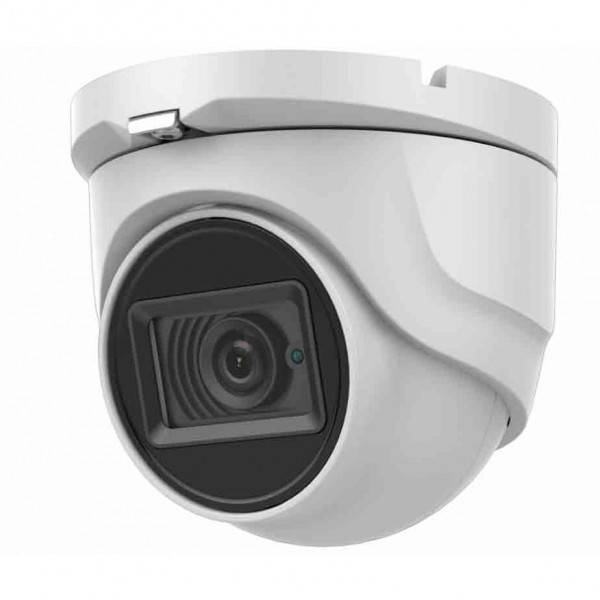

HD-TVI Dome 4K: 4-in-1(CVI/TVI(8MP), AHD(5MP), Analog) Dome 4K 2.8mm Fixed Lens IR LED's Weatherproof - White

More Views

HD-TVI Dome 4K: 4-in-1(CVI/TVI(8MP), AHD(5MP), Analog) Dome 4K 2.8mm Fixed Lens IR LED's Weatherproof - White

Availability: In stock

Model: TAAC-HAC318-MD-2.8


8.29 Megapixel CMOS, 4-in-1(CVI/TVI(8MP), AHD(5MP), Analog), 2.8mm Fixed Lens, 3840x2160, IR LED's Up To 100ft, DWDR, BLC, IP67, DC12V - White


Details

Specifications
Model Number HAC318-MD2.8
Image Sensor 8.29MP CMOS Sensor
Video Format PAL / NTSC
Max resolution 3840 x 2160
Min. Illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter speed 1/15 s to 1/50,000 s
Lens 2.8mm
Day & Night ICR
Synchronization Internal synchronization
Video Frame Rate TVI: 15FPS @ 8MP, 20FPS @ 5MP, 30FPS @ 4MP CVI: 15FPS @ 8MP AHD: 20FPS @ 5MP
HD Video Output 1 Analog HD output
Wide Dynamic Range 105dB
S / N Ratio More than 52dB
Scene Indoor, Outdoor, Indoor1, LOW-LIGHT
Camera ID On/off (15 characters, position programmable)
AGC Support
D/N Mode Color/BW/EXT
White Balance ATW, AWC-SET, Indoor, Outdoor, Manua
Privacy Mask On/Off, maximum 2 zones
Motion Detection On/Off, maximum 4 zones
BLC Support
Anti-flicker On/off
Language English, Japanese, CHN1, CHN2, Korean, German, French, Italian, Spanish, Polish, Russian,
Portuguese, Dutch, Turkish, Hebrew and Arabic
Function Eclipse, Digital noise reduction, Digital zoom(62x), Slow shutter, Mirror, Defog, Defect pixel
correction, SMART D-ZOOM
Working Temperature / Humidity -40 °C – 60 °C (-40 °F – 140 °F)
Humidity 90% or less (non-condensing)
Power Supply 12 VDC
Power Consumption 12V DC: Max. 5.3W
Weather Proof Ratings IP67, IK10
IR Range Up to 90 ft
Communication Up the coax(need UTC controller)
Protocol: Pelco-C(Coaxitron)
Dimensions Φ3.54 x 3.12″
Weight 0.68 lb
Electrical Box HTH-280ZJ-XS
Wall Mount HTH-272ZJ-110-TRS
Pole Mount HTH-275ZJ
Corner Mount HTH-276ZJ

Additional Information

UPC No
Camera Housing Dome
Camera Resolution 4K
Camera Technology HD-TVI

HD-TVI Dome 4K: 4-in-1(CVI/TVI(8MP), AHD(5MP), Analog) Dome 4K 2.8mm Fixed Lens IR LED's Weatherproof - White

USD

$39.00
