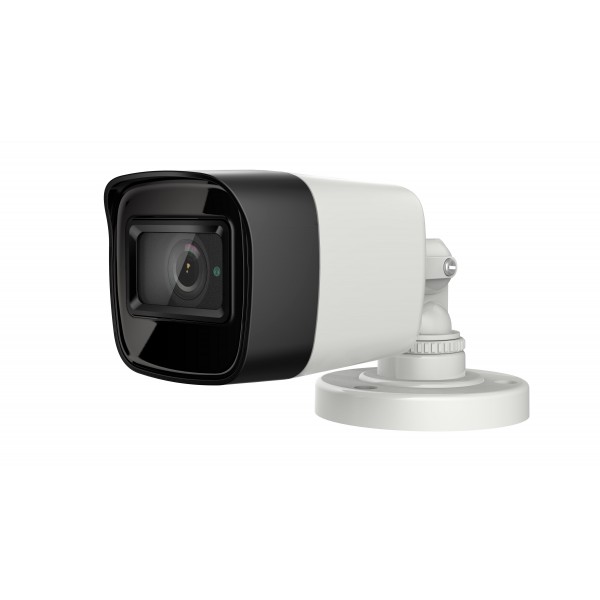

HD-TVI Bullet 4K: 4-in-1(CVI/TVI(8MP), AHD(5MP), Analog) Bullet 4K 2.8mm Fixed Lens IR LED's Weatherproof - White
Details
| Specifications |
|
| Model Number |
TAAC-HAC318-MB-2.8 |
|
| Image Sensor: |
8MP CMOS |
|
| Video Format |
PAL/NTSC |
|
| Effective Pixels: |
3840 x 2160 |
|
| Min. Illumination |
0.005 Lux @ (F1.2, AGC ON),0 Lux with IR |
|
| Shutter Time |
1/30 s to 1/50,000 s |
|
| Lens: |
2.8mm |
|
| Adjustment Range: |
Pan: 0 – 360°, Tilt: 0 – 90° |
|
| Day& Night: |
IR cut filter with auto switch |
|
| Wide Dynamic Range: |
DWDR |
|
| Video Frame Rate: |
TVI: 15FPS @ 8MP, 20FPS @ 5MP, 30FPS @ 4MP CVI: 15FPS @ 8MP AHD: 20FPS @ 5MP |
|
| HD Video Output: |
1 x 4 in 1 HD output |
|
| CVBS Output |
N/A |
|
| D/N Mode |
Color/BW/Auto |
|
| Working Temperature / Humidity |
-40 °C – 60 °C (-40 °F – 140 °F)
Humidity 90% or less (non-condensing) |
|
| Power Supply: |
12 V DC±15% |
|
| Power Consumption: |
Max. 3.5W |
|
| Weather Proof: |
IP67 |
|
| IR Range |
Up to 60 ft |
|
| Dimensions |
2.28″ x 2.40″ x 6.42″ |
|
| Weight: |
0.77 lbs |
|
| Electrical Box |
HTH-280ZJ-XS |
|
| Pole Mount |
HTH-275ZJ |
|
| Corner Mount |
HTH-276ZJ |
|
Additional Information
| UPC |
No |
| Camera Housing |
Bullet |
| Camera Resolution |
4K |
| Camera Technology |
HD-TVI |
HD-TVI Bullet 4K: 4-in-1(CVI/TVI(8MP), AHD(5MP), Analog) Bullet 4K 2.8mm Fixed Lens IR LED's Weatherproof - White
