Details
| Model |
TAAC-D800G-MCL-2.8 |
| Camera |
| Image Sensor |
1/2.9" 2Megapixel SONY CMOS |
| Effective Pixels |
1920(H)×1080(V) |
| S/N Ratio |
Min 48dB (AGC closed) |
| Electronic Shutter |
1/60s~1/10,000s |
| Video Frame Rate |
30fps@1080P |
| Synchronization |
Internal |
| Min. Illumination |
0.05Lux@F1.2 (Color), 0 Lux (IR on) |
| Video Output |
CVI/TVI/AHD/CVBS (Can switch) |
| Camera Features |
| Max. IR LEDs Length |
120ft |
| Day/Night |
Smart / Color / B/W |
| WDR |
OFF/ON |
| Noise Reduction |
2D-DNR |
| WHITE Balance |
ATW/MWB |
| OSD Menu |
Yes |
| Lens |
| Focal Length |
2.8mm |
| General |
| Power Supply |
DC12V±10% |
| Working Environment |
-10°C~+55°C / Less than 85%RH (no condensation) |
| Transmission Distance |
Over 300m via 75-3 coaxial cable |
| Ingress Protection |
IP66 |
| Package Dimensions |
4.5" x 4.5" x 3.75" |
| Weight |
1 lb |
Additional Information
| UPC |
No |
| Camera Housing |
Dome |
| Camera Resolution |
2.0MP / 1080P |
| Camera Technology |
4-in-1 (CVI/TVI/AHD/CVBS) |

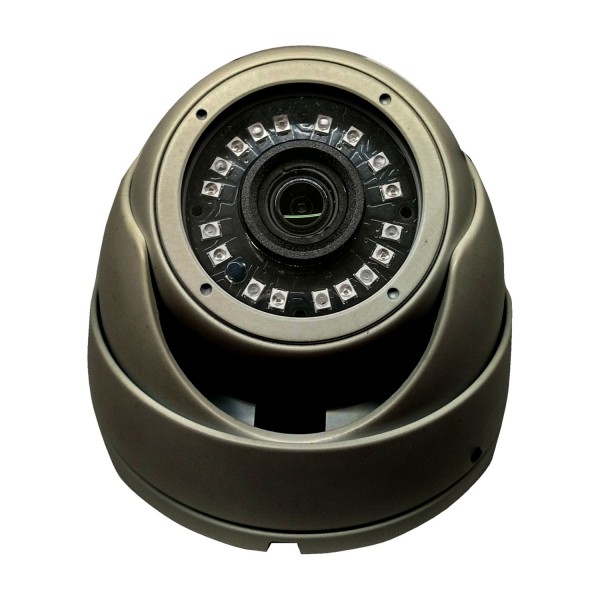

HD-TVI Dome: 4-in-1 (CVI, TVI, AHD, Analog) Turret Dome 1080P 2.8mm Fixed Lens 24IR Weatherproof - Grey
