Details
|
Signal System |
NTSC |
|
Pixedl |
1920(H)x1250(V) |
|
Image Sensor |
1/2.7" 2.4Megapixel Panasonic CMOS |
|
Electronic Shutter |
1/50s~1/100,000s | 1/60~1/100,000s |
| Video Output |
CVI/TVI/AHD/CVBS (Can Switch) |
|
Video Frame Rate |
1920x1080@25 fps; 1920x1250@30 fps |
|
Synchronization |
Internal |
|
Min. illumination |
0.01 Lux@F1.2(AGC ON), 0 Lux IR LED on |
|
Max. IR LED Length |
150ft |
|
Day/Night |
Auto(ICR)/B&W/Color |
|
Noise Reduction |
2D/3D |
|
Lens Focal Length |
3.7mm |
|
Power Supply |
DC12V |
|
Mount Type |
M12 |
|
Power Consumption |
400mA |
|
Working Environment |
-30°C~60°C |
|
Transmission Distance |
Over 500m via 75-3 coaxial cable |
|
Working Temperature |
-10°C~+45°C |
|
Storage Temerature |
-40°C~+80°C |
|
Video Output Amplitude |
1.0Vp-p |
|
Lens Type |
Manual |
|
Storage Humidity |
Indoor 85%RH (No Condensation) |
|
OSD Menu |
NO |
|
IR LED |
48 IR |
|
Product Weight |
0.25 lb |
|
Product Dimension: |
4.75"x2" |
|
Package Weight" |
0.5 lb |
|
Package Dimension: |
6.25"x6.25"x4.75" |
Additional Information
| UPC |
No |
| Camera Housing |
Speciality |
| Camera Resolution |
2.0MP / 1080P |
| Camera Technology |
4-in-1 (CVI/TVI/AHD/CVBS) |

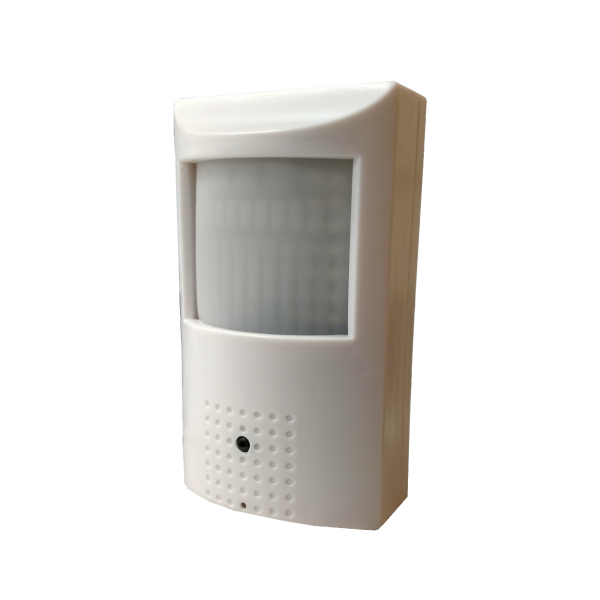

HD-TVI Specialty: 4-in-1(CVI, TVI, AHD, Analog) 1080p Motion Detector Camera with 48 IR(150ft) , 3.7mm Pinhole Lens - White
