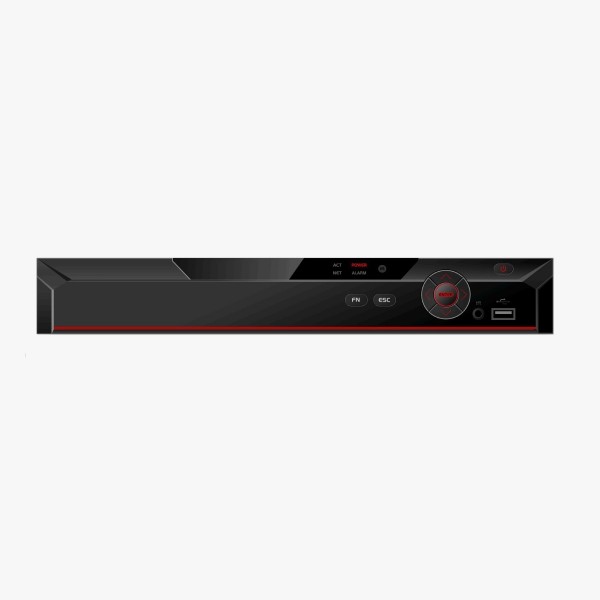

DVR XVR: 4 Channel Penta-brid 4K Mini 1U Digital Video Recorder

More Views

DVR XVR: 4 Channel Penta-brid 4K Mini 1U Digital Video Recorder

Availability: In stock

Model: DVR-XVR701HE-04-4KL-X

4 Channel Penta-brid 4K Mini 1U Digital Video Recorder, H.264,
HDCVI/AHD/TVI/CVBS/IP video inputs, Up to 8MP input, IOT, POS, Smart
Search

Details

Max Image Resolution 8MP
System Compression H.265+/H.265/H.264+/H.264
Main Processor Embedded Processor
Video Interface 1 HDMI, 1 VGA
Video Resolution 4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF
Multi-Screen Display 1/4 (IP extension mode: disabled), 1/4/16 (IP extension mode: enabled)
HDCVI Camera Input 4K, 6MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
IPC In 4+4 Channel, each channel up to 8MP
OSD Yes
Audio In 4
Audio Out 1
2 Way Audio Reuse audio in/out, RCA
Recording Resolution 4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF
Recording Frame Rate

Main stream: the 1st channel 4K(1~7fps), 6MP(1~10fps), 5MP(1~12fps), 4MP/3MP(1~15fps), others 4K-N(1~7fps), 4MP/3MP(1~15fps); 4M-N/1080P/720P/960H/D1/CIF(1~25/30fps)
Sub steram: 960H(1~15fps); D1/CIF(1~25/30fps)

Bit Rate 32Kbps ~ 6144Kbps Per Channel
Recording Mode Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), alarm, stop
Record Interval 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Playback Channels 1/4
Playback Search Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode USB Device/Network
Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 x 18), Video Loss, Tampering and Diagnosis
Alarm In 8
Alarm Relay Output 3
Network Interface 1 RJ-45 Port (1000M)
Network Function

HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)

Network Max. Users 128 users
Interoperability ONVIF 16.12, CGI Conformant
Mobile iPhone, Android
RS485 1 Port, for PTZ Control
USB 2 USB Ports (2 USB 2.0)
RS232 N/A
RS422 N/A
Power Supply DC12V/4A
Power Consumption <10W (Without HDD)
Internal HDD 1 SATA Port, up to 10TB capacity for each disk
e-SATA N/A
Operating Conditions -10°C ~ +55°C (+14°F ~ 131°F), 0~90% RH
Storage Conditions -20°C ~ +70°C (-4°F ~ 158°F), 0~90% RH
Dimensions Mini 1U, 325mm×255mm×55mm (12.8" x 10" x 2.2")
Weight Net Weight (without HDD) 1.2kg (2.6lb) Gross Weight 1.9kg (4.2lb)

Additional Information

UPC No
Recorder Technology Penta-brid: HDCVI / HDTVI / AHD / Analog / IP
Recorder Channel 4 Channel
Recording Rate No
