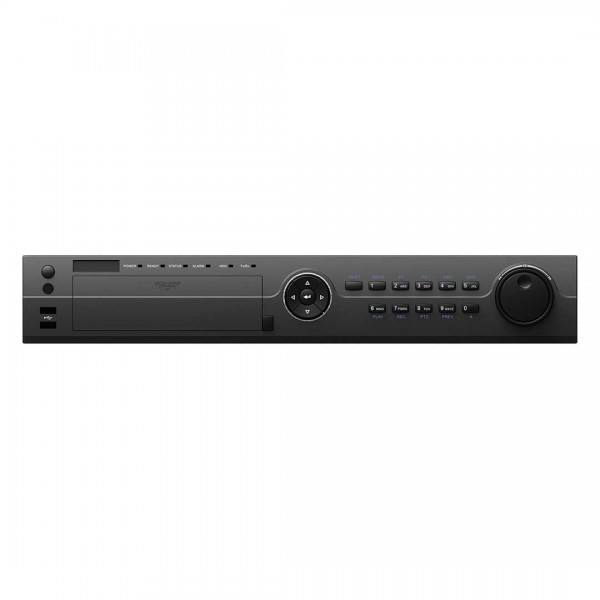

DVR TVI: HD-TVI 8MP 24 Channel Hybrid DVR

More Views

DVR TVI: HD-TVI 8MP 24 Channel Hybrid DVR

Availability: In stock

Model: DVR-XVR-HAR526-24



  • H.265 & Dual-stream video compression

  • Support HD-TVI/analog/AHD/HDCVI/IP camera hybrid

  • Support 8 IP Cameras, up to 8 MP

  • Disable TVI in order to add more IP up to 32-ch

  • HDMI output up to 4K resolution

  • Connectable to the Coaxitron camera/dome with long transmission

    distance

  • Support up to 16 Ch. synchronous playback




Details

Specifications
Model Number DVR-XVR-HAR526-24
Video compression H.265+ / H.265 / H.264+ / H.264
Video Input HDTVI up to 8MP, AHD up to 5MP, HDCVI up to 1080p, CVBS
IP Video Input 8-ch ( up to 32-ch), up to 8MP resolution.
Audio compression G.711u
Audio Input/ Two-way audio in 4 Ch. input/1 ch two way audio RCA (2.0 Vp-p, 1kΩ)
HDMI1 / VGA output 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
HDMI2 output 4K (3840 x 2160)30Hz / 2K (2560 x 1440)60Hz / 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Encoding resolution Up to 5MP
Frame rate Main stream: 8MP@8fps; 5MP@ 12fps; 4MP@15fps; 3MP@18fps; 1080p/720p/WD1/4CIF/VGA/CIF@30fps
Sub-stream: WD1/4CIF/CIF@30fps
Video bitrate 32 Kbps to 10 Mbps
Audio output 1 Ch., RCA (Linear, 1KΩ, for VGA output and CVBS output)
Audio bitrate 64 Kbps
Dual-stream Support
Stream type Video & Audio
Synchronous playback 16 Ch.
Remote connections 128
HDD Type 4 SATA interfaces for 4 HDDs; 1 eSATA interface
Network protocols TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS
Capacity Up to 8 TB capacity for each disk
Network interface 1; 10M / 100M / 1000M
self-adaptive Ethernet interface
Serial interface RS-232, RS-485, Keyboard
USB Interface 2 × USB2.0, 1 x USB3.0
Power 100 ~ 240VAC, Max. 74W
Working temperature -10 ºC ~+55 ºC (14 ºF ~ 131 ºF)
Working humidity 10% ~ 90%
Chassis 19-inch rack-mounted 1.5U chassis
Dimensions (W × D × H) 17.5″W × 15.3″D × 2.8″H
Weight (Without hard disks) 15.4 lbs

Additional Information

UPC No
Recorder Technology Penta-brid: HDCVI / HDTVI / AHD / Analog / IP
Recorder Channel 24 Channel
Recording Rate 4K

DVR TVI: HD-TVI 8MP 24 Channel Hybrid DVR

USD

$179.00
