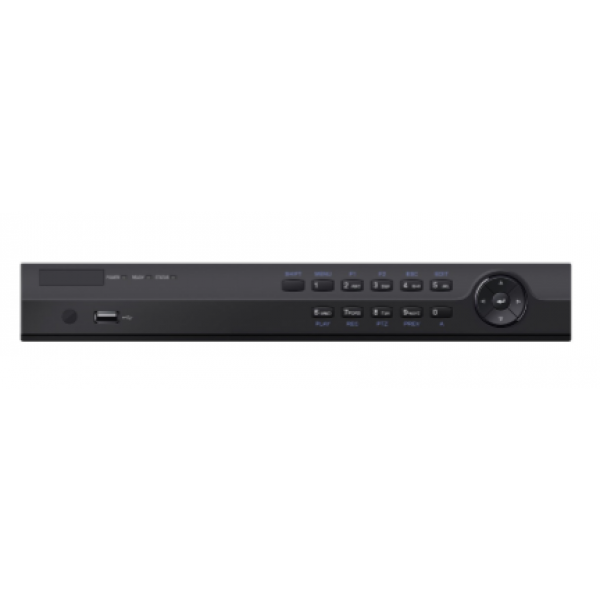

| Model Number |
DVR-XVR-HAR326-04 |
|
| Video compression |
H.264 / H.264+ /H.265 / H.265+ |
|
| Analog, AHD, HD-TVI and HD-CVI video input |
4 Ch., BNC interface (1.0Vp-p, 75Ω) |
|
| HDTVI Input |
5MP, 3 MP, 1080p, 720p |
| AHD Input |
1080p, 720p |
| HDCVI Input |
1080p, 720p |
|
| CVBS Input |
PAL/NTSC |
|
| IP Video Input |
2CH, Up to 6MP Resolution / Supports H.265+/H.265/H.264+/H.264 IP cameras |
|
| Audio compression |
G.711u |
|
| Audio input |
4-ch, RCA (2.0 Vp-p, 1 KΩ) |
|
| Video Output |
1 HDMI, 1 VGA, 1 CVBS |
|
| CVBS Output |
PAL/NTSC |
|
| VGA output |
1920×1080@60Hz, 1280×1024@60Hz, 1280×720@60Hz, 1024×768@60Hz |
|
| HDMI output |
2048×1080@60Hz, 1920×1080@60Hz, 1280×1024@60Hz, 1280×720@60Hz, 1024×768@60Hz |
|
| Encoding resolution |
Up to 5MP @ 12fps for HD-TVI, and up to 6MP @ 20fps for IP camera. |
|
| Frame rate |
Up to 20fps @ 5MP TVI, and 20fps @ 6MP IP camera |
|
| Video bitrate |
32 Kbps to 10 Mbps |
|
| Audio output |
1 Ch., RCA (Linear, 1KΩ) |
|
| Audio bitrate |
64 Kbps |
|
| Dual-stream |
Support |
|
| Stream type |
Video & Audio |
|
| Synchronous playback |
4 Ch. |
|
| Alarm I/O |
4/1 |
|
| Remote connections |
128 Streams |
|
| Network protocols |
TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
|
| SATA |
1 SATA interface |
|
| Capacity |
Up to 10TB capacity |
|
| Network interface |
1; 10M / 100M self-adaptive Ethernet interface |
|
| Serial interface |
1 x RS-485 serial interface |
|
| USB port |
2 × USB2.0 |
|
| Power supply |
12 VDC |
|
| Consumption (without hard disks) |
≤ 10W |
|
| Working temperature |
-10 ºC ~+55 ºC (14 ºF ~ 131 ºF) |
|
| Working humidity |
10% ~ 90% |
|
| Dimensions |
315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch) |
|
| Weight (without hard disks) |
2.6 lb |
|
