Details
| Max Image Resolution |
5MP |
| System Compression |
H.265 High profile |
| Main Processor |
Embedded Processor |
| Video Compatibility |
HD-TVI / AHD / HD-CVI |
| Max. Video Channels |
8CH |
| Video In |
BNC x 8 |
| IPC In |
IPC x 4 |
| IPC Resolution |
5MP / 4MP / 3MP / 1080P / 720P |
| IPC Frame Rate |
25fps ( PAL ) / 30fps ( NTSC ) |
| Video Interface |
HDMI/VGA/CVBS |
| Video Resolution |
TVI/AHD : 5MP/4MP/1080P/720P/WD1 CVI : 4MP/1080P/720P/WD1 |
| Multi-Screen Display |
N/A |
| OSD |
No |
| Audio In |
8CH, RCA |
| Audio Out |
1CH, RCA |
| 2 Way Audio |
Take up channel one as an audio input |
| Recording Resolution |
5MP Lite/4MP Lite/1080P/1080P Lite/720P/WD1 |
| Recording Frame Rate |
5MP Lite :10fps
4MP Lite/1080P : 12fps (PAL)/15fps (NTSC)
1080P Lite/720P/WD1 : 25fps (PAL)/30fps (NTSC) |
| Recording Encode |
N/A |
| Recording Quality |
N/A |
| Recording Mode |
Manual, Timer, Motion |
| Recording File Management |
N/A |
| Playback Channels |
8CH |
| Playback Search |
Time slice / time / event / tag search |
| Playback Smart Search |
Highlight colors to display the camera record in a certain period of time, different colors refer to different record events |
| Playback Function |
Play, pause, FF, FB, digital zoom, etc. |
| Alarm In |
8 CH |
| Alarm Out |
2 CH |
| Alarm Mode |
Manual, motion, exception |
| Trigger Events |
Record,snap,alarm out,e-mail, etc |
| Network Bandwidth |
60/60Mbps(access/transfer) |
| Network Function |
TCP/IP、PPPoE、DHCP、DNS、DDNS、UPnP、NTP、SMTP |
| Network Max. Users |
N/A |
| Mobile |
iPhone, Android |
| Cellphone Function |
N/A |
| RS485 |
RS485 × 1, connect to PTZ or keyboard |
| USB |
2 x USB2.0 |
| remote |
Optional |
| Power Supply |
DC 12V / 2A |
| Power Consumption |
＜12W (without HDD) |
| Internal HDD |
1 x SATA (up to 8TB capacity for each disk) |
| e-SATA |
e-SATA x 1 |
| Operating Conditions |
-10~50°C, 10%~90% (Humidity) |
| Dimensions |
300mm x 248mm x 52mm (W x D x H) |
Additional Information
| UPC |
No |
| Recorder Technology |
Penta-brid: HDCVI / HDTVI / AHD / Analog / IP |
| Recorder Channel |
8 Channel |
| Recording Rate |
5MP |

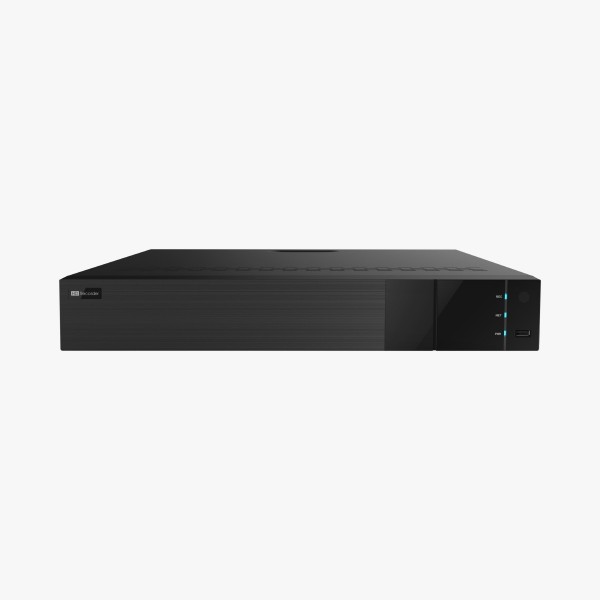

DVR TVI: 8CH TVI/AHD/CVI 5MP DVR
