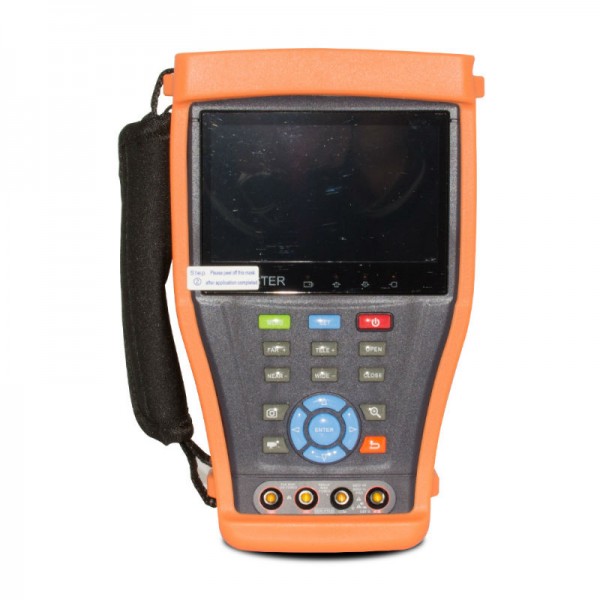

HD CCTV Video Tester 5 in 1 (Analog / AHD / TVI / CVI / IP )

More Views

HD CCTV Video Tester 5 in 1 (Analog / AHD / TVI / CVI / IP )

Be the first to review this product

Availability: In stock

Model: A28143

Advanced All in 1 CCTV, network tester. Supports Analog / AHD / TVI / CVI / IP. IP Camera detect more Than 40 IP Camera Brands, 4.3" Wide Angle Touch Screen, Key Operation, & Osd Menu, Built-in Wi-fi, Wireless Network Camera Test, Led Lamp, Calculator, & Other Application Tools, Video Screen Snapshot, Record, Save, View, & Playback, Support Both Onvif Ptz & Analog Ptz Control, Ethernet Network, Cabling System, & Fiber Optic Communication Test, 5,000mah Lithium Polymer Battery , Working Time up to 16 Hours

Details

Signal mode NTSC/PAL(Auto Switches
Display 4.3" Wide Angle Touch Screen, 800 x 480 Resolution
LCD Adjustment Brightness / Contrast/ Saturation
Network Port 10/100M auto adapt, RJ45
Wi-Fi Built-inWi-Fi (Speed: 150m / Displaywireless camera image)
IP camera Type Over 40 types (ONVIF, ACTi, Dahua, Hikvision, Samsung, etc.) Customized welcome
Zoom Image Support Analog camera and IP camera image zoom /move
Video Control Image Screen snapshot, record ,save ,view and record and play back
HDMI Output 1 channel x HDMI Output (Support1080p: 1920*1080)
PoE Power Output 48V (max. 24W)
Video Signal Test 1 channel x BNC Input & Out (Support PAL / NTSC)
Video Level Meter PEAK video signal level, SYNC signal level, Color bar chroma level measurement
SDI camera Test (optional) 1 channel x BNC Input (Support60fps @ 720p & 1080i / 30fps @ 1080p)
Audio test 1 channel x Audio Signal Input Test & 1 channelx Headphone Input
PTZ control Support RS232 / RS485 control,Baud 600 ~ 115,200bps, Compatible with over 30 Protocols
Color Bar Generator PAL/NTSC Color Bar Video Signal or Video Cable (RGB / B&W)
UTP Cable Test Test & display UTP cable connection status on the screen
Data Monitor Captures & analyzescommand data from controlling device, also can send hexadecimal
Network Test IP address scan, Link & PING test, Quicklysearch connected device's IP address
Cable Finder Search the cable by the audio signal
PoE / PSE Test Measurement POE switch / PSE power supply voltage& cable connection status
  Digital Multi-Meter (optional) AC/DC Voltage & Current Resistance, Capacitance, Data hold, Relative measurement, Continuity
Test-Speed: 3 time/s & Data Range: -6600 d 6600
Optical Power Meter (optional) Calibrated Wavelength (nm): 850/1300/1310/1490/1550/1625 & Power range (dBm) ɿ-70 d +10
Visual Fault Locator (optional) Test fiber's Bending & Breakage( SM / MM Fibers)
TDR Cable Test (optional) Cable length & Short circuitMeasurement (BNC cable, Coaxial cable, Cat 5/6, Telephone cable)
Power Supply & Battery 12V DC / 2A & Built-in 7.4V LithiumPolymer Battery (5,000 mAh)
Working Environment 14ºF ~ 122ºF (-10°C ~ 50°C) & Humidity: 30% d 90%
Dimension & Weight 11.4" (L) x 9.4" (W) x 3.9" (D) (290 x 239 x 99 mm) & 3.0lbs (1.36kg)

Additional Information

UPC 688474290549
